✓ Sellado 100% estanco en conexiones críticas
✓ Bordes redondeados protegen integridad de mangueras
|
K-SEAL code |
Band & Bridge |
Trunnion |
Bolt & Nut |
Corrosion Resistance |
Suggest Installation Torque(Nm) |
|
TBHXXXJ-K |
301SS |
301SS |
glavanized steel |
Good |
5.6-6.8Nm |
|
TBFXXXJ-K |
301SS |
301SS |
301SS |
Good |
5.6-6.8Nm |
|
TBGXXXJ-K |
304SS |
304SS |
304SS |
Better |
5.6-6.8Nm |
|
TBLXXXJ-K |
316SS |
316SS |
316SS |
Best |
5.6-6.8Nm |

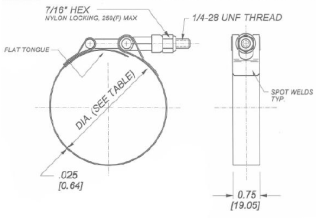

| Size | Inches(") | Millimeters(mm) | ||||
| Nominal | Min. | Max. | Nominal | Min. | Max. | |
| 156 | 1.50 | 1.31 | 1.56 | 38 | 33 | 40 |
| 187 | 1.75 | 1.62 | 1.87 | 44 | 41 | 47 |
| 206 | 2.00 | 1.81 | 2.06 | 51 | 46 | 52 |
| 225 | 2.15 | 1.94 | 2.25 | 55 | 49 | 57 |
| 237 | 2.25 | 2.06 | 2.37 | 57 | 52 | 60 |
| 250 | 2.40 | 2.19 | 2.50 | 61 | 56 | 64 |
| 262 | 2.50 | 2.31 | 2.62 | 64 | 59 | 67 |
| 287 | 2.75 | 2.56 | 2.87 | 70 | 65 | 73 |
| 312 | 3.00 | 2.81 | 3.12 | 76 | 71 | 79 |
| 337 | 3.25 | 3.06 | 3.37 | 83 | 78 | 86 |
| 359 | 3.50 | 3.28 | 3.59 | 89 | 83 | 91 |
| 387 | 3.78 | 3.56 | 3.87 | 96 | 90 | 98 |
| 394 | 3.85 | 3.63 | 3.94 | 98 | 92 | 100 |
| 412 | 4.00 | 3.81 | 4.12 | 102 | 97 | 105 |
| 437 | 4.25 | 4.06 | 4.37 | 108 | 103 | 111 |
| 462 | 4.50 | 4.31 | 4.62 | 114 | 109 | 117 |
| 487 | 4.75 | 4.56 | 4.87 | 121 | 116 | 124 |
| 512 | 5.00 | 4.81 | 5.12 | 127 | 122 | 130 |
| 537 | 5.25 | 5.06 | 5.37 | 133 | 129 | 136 |
| 562 | 5.50 | 5.31 | 5.62 | 140 | 135 | 143 |
| 587 | 5.75 | 5.56 | 5.87 | 146 | 141 | 149 |
| 612 | 6.00 | 5.81 | 6.12 | 152 | 148 | 155 |
| 637 | 6.25 | 6.06 | 6.37 | 159 | 154 | 162 |
| 662 | 6.50 | 6.31 | 6.62 | 165 | 160 | 168 |
| 687 | 6.75 | 6.56 | 6.87 | 171 | 167 | 174 |
| 712 | 7.00 | 6.81 | 7.12 | 178 | 173 | 181 |
| 737 | 7.25 | 7.06 | 7.37 | 184 | 179 | 187 |
| 762 | 7.50 | 7.31 | 7.62 | 191 | 186 | 194 |
| 787 | 7.75 | 7.56 | 7.87 | 197 | 192 | 200 |
| 812 | 8.00 | 7.81 | 8.12 | 203 | 198 | 206 |
| 837 | 8.25 | 8.06 | 8.37 | 210 | 205 | 213 |
| 919 | 9.00 | 8.61 | 9.19 | 229 | 219 | 233 |
| 1113 | 11.00 | 10.55 | 11.13 | 279 | 268 | 283 |
| 1313 | 13.00 | 12.55 | 13.13 | 330 | 319 | 334 |
|
Parámetro |
Certificación |
|
Norma |
Cumple/supera SAE J1508 Tipo TB |
|
Material |
Acero inox AISI 304/316 (espesor ≥1.2mm) |
|
Stock |
Empaquetado • Granel |
|
Medidas |
Disponibles bajo pedido |
